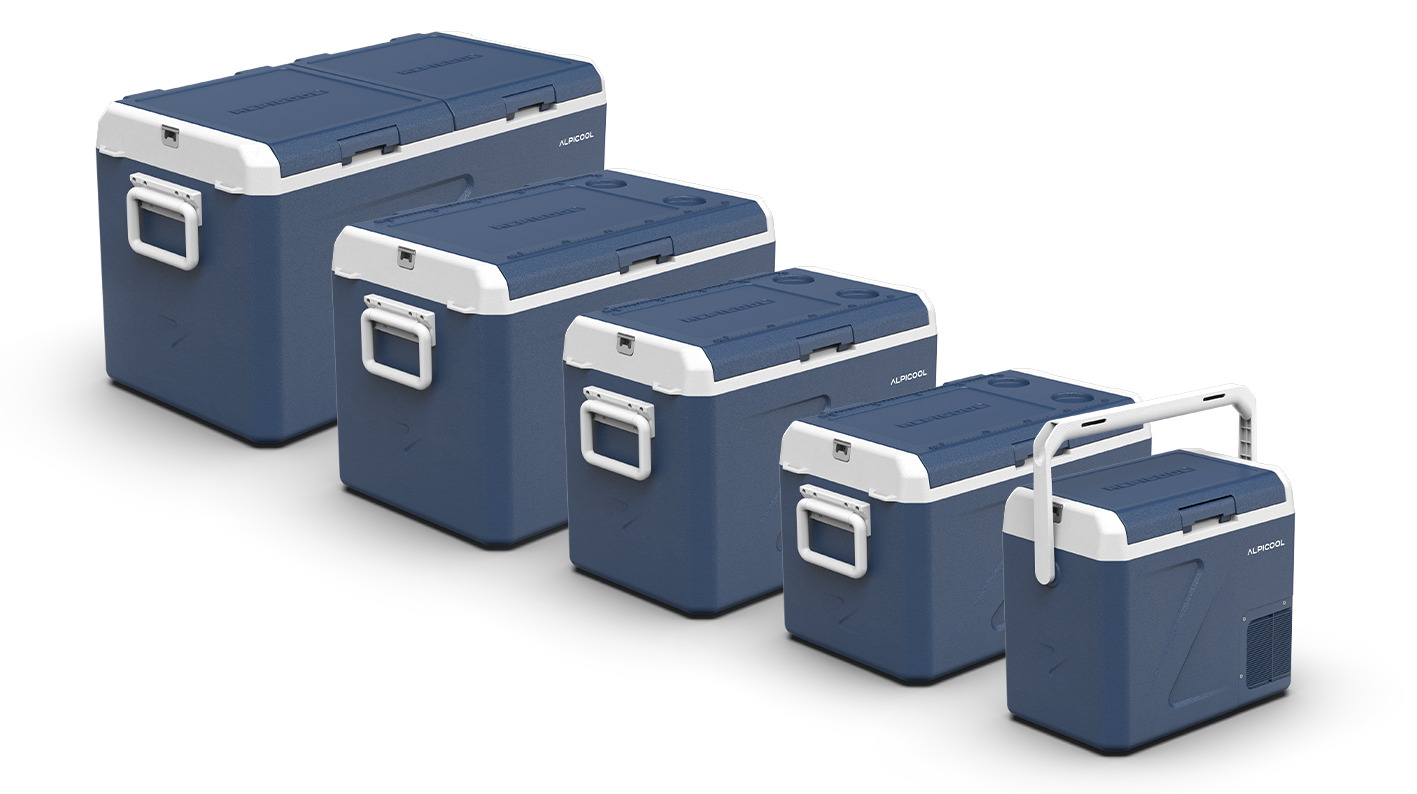

ALPICOOL ICF Series
The ICF‑series delivers flexible fridge‑or‑freezer performance, with the ICF81 offering dual‑compartment independent temperature control. Built tough for bumpy roads, it supports short‑time 45° inclined operation and runs whisper‑quiet below 45dB. You may switch between fast‑cooling and energy‑saving modes via the LED display panel. Equipped with three‑stage car battery protection and reversible door design, it works with DC/AC power for cars, trucks, RVs, boats and home‑use scenarios. Select models feature tie‑down slots, interior LED light, drain plug and practical accessories to meet your diverse cooling demands.
DETAIL DISPLAY

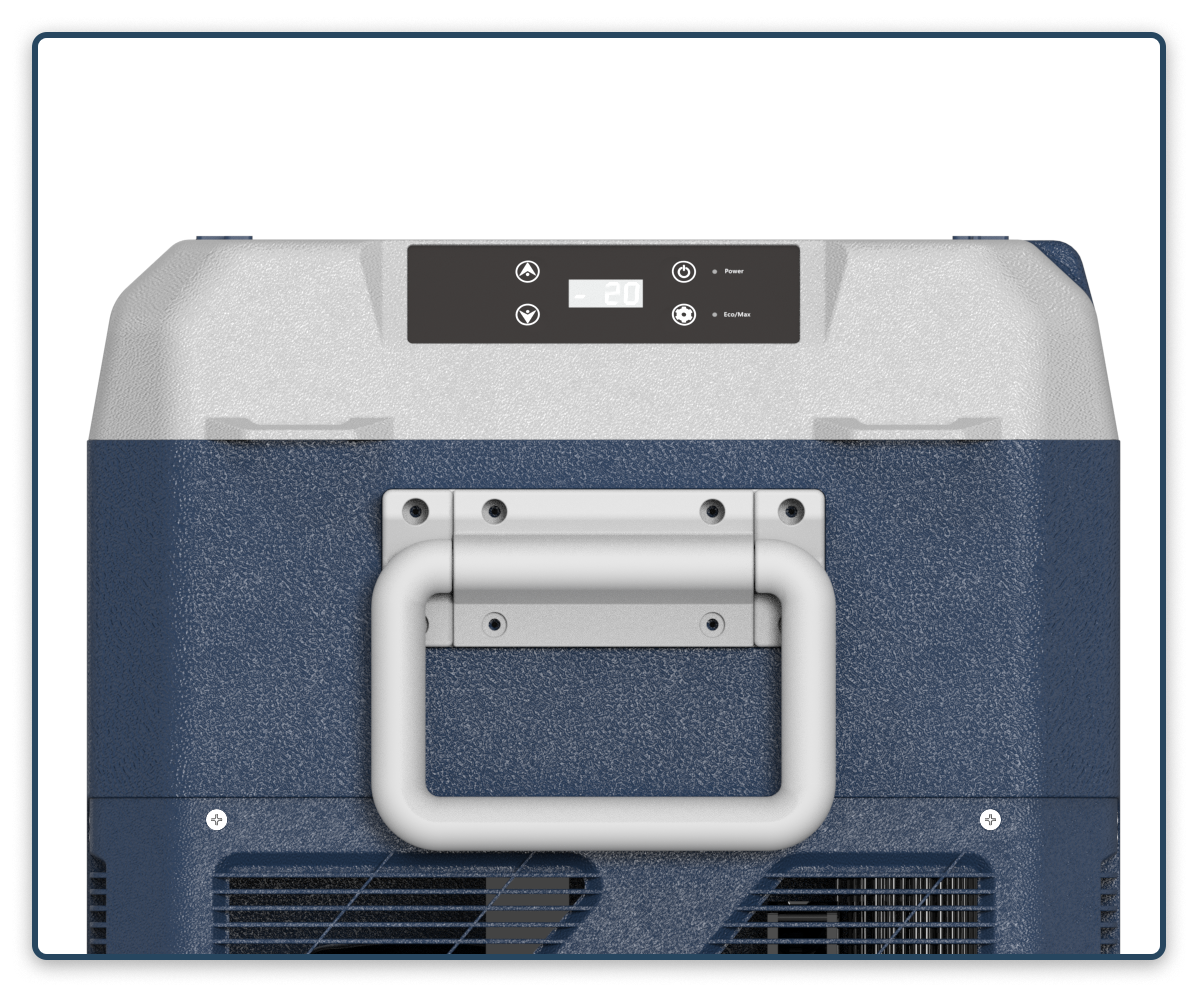

LED DISPLAY(ICF19/31/41/61)

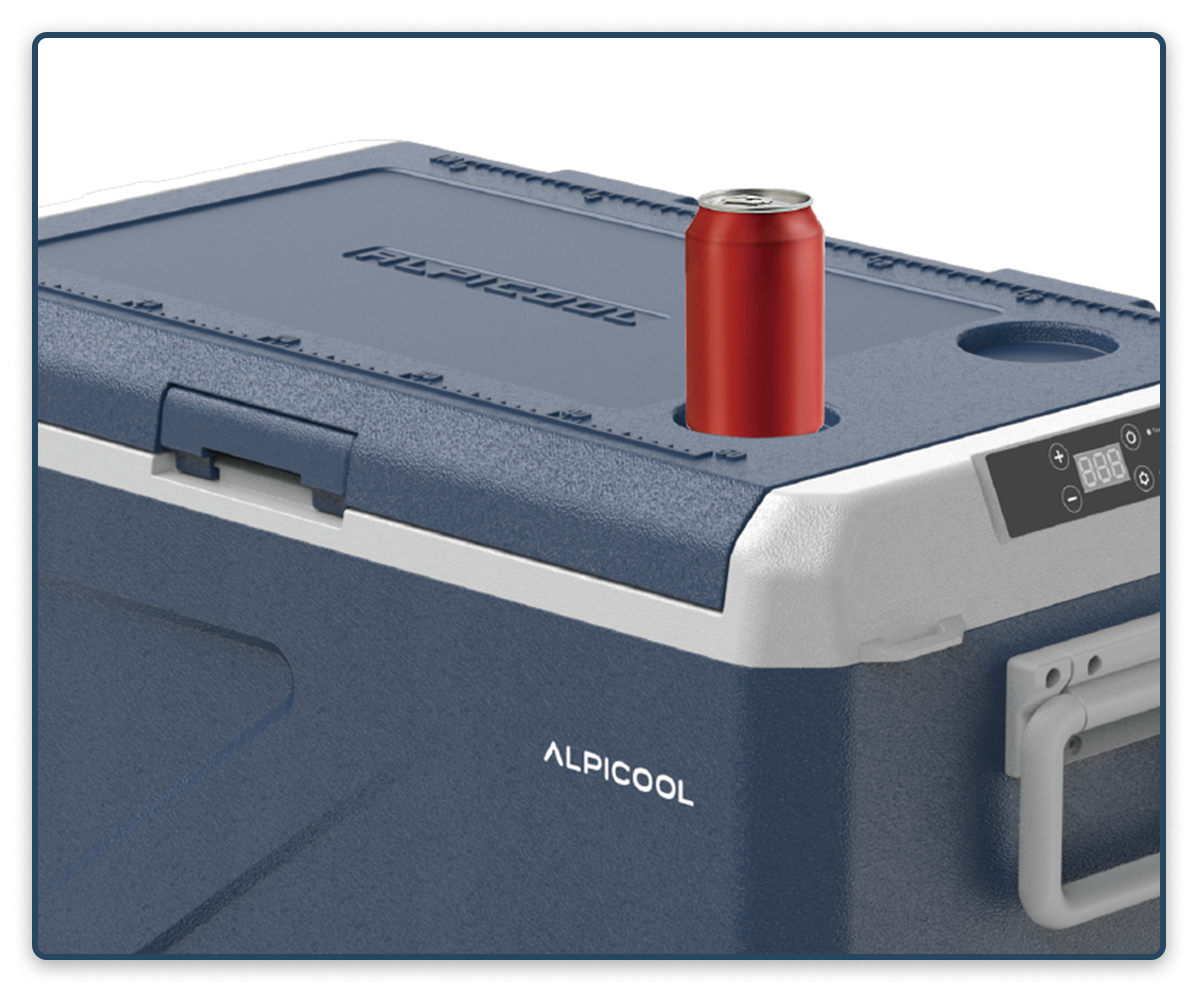

CUP HOLDERS(ICF31/41/61)

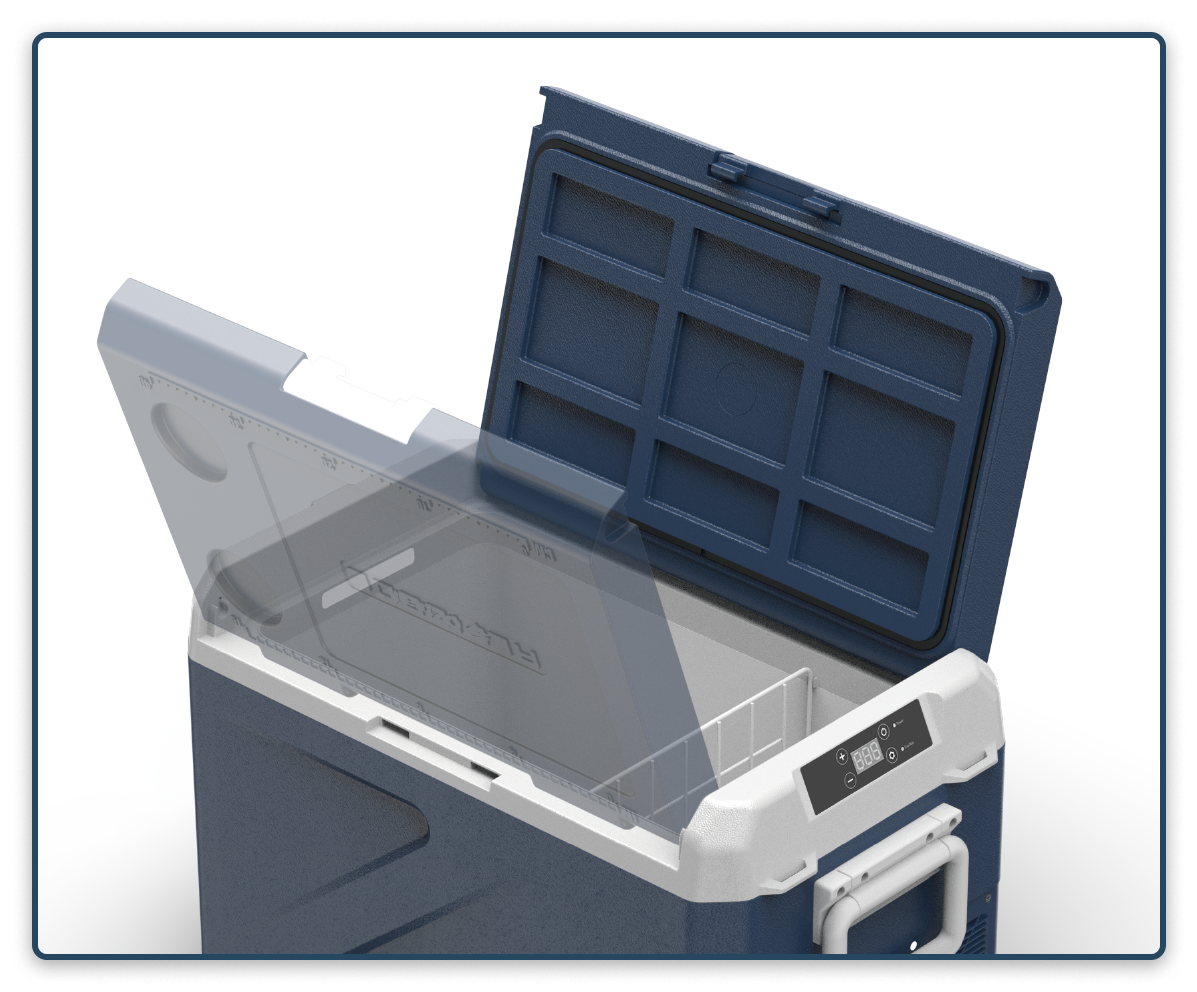

REVERSIBLE DOOR

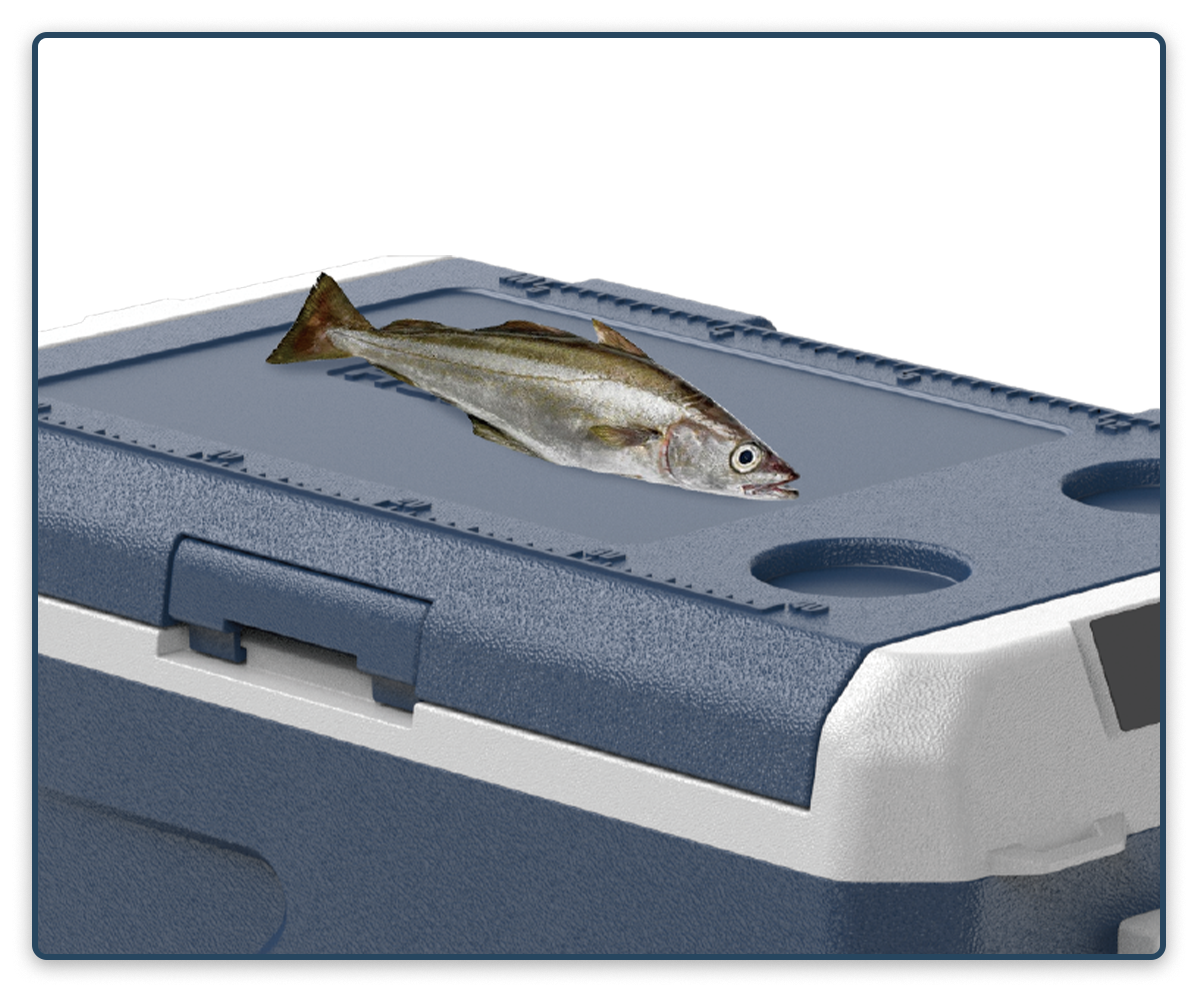

MEASURING SCALE DESIGN(ICF31/41/61)
SIZE & FEATURE
MODEL
OPERATION
FRIDGE CAPACITY
DIMENSION
N.W
G.W
REFRIGERATION RANGE
NOICE LEVEL
RATED POWER INPUT
RATED CURRENT
ICF19
AC100-240V,DC 12/24V
19L
513*310*557MM(Lift the handle)513*349*424MM(Put down the handle)
8.9KG
10.8KG
-20~20°C
≤45dB
45W
DC5.0A/2.5A,AC 1.2A~0.5A
ICF31
AC100-240V,DC 12/24V
32L
669*374*398MM
12.9KG
15.1KG
-20~20°C
≤45dB
60W
DC5.0A/2.5A,AC 1.2A~0.5A
ICF41
AC100-240V,DC 12/24V
40L
669*374*463MM
13.8KG
16.1KG
-20~20°C
≤45dB
60W
DC5.0A/2.5A,AC 1.2A~0.5A
ICF61
AC100-240V,DC 12/24V
65L
775*441*477MM
16.9KG
19.7KG
-20~20°C
≤45dB
60W
DC5.0A/2.5A,AC 1.2A~0.5A
ICF81
AC100-240V,DC 12/24V
65L
927*447*500MM
20.5KG
23.3KG
-20~20°C
≤45dB
80W
DC 6.0A/3.0A,AC 1.5A~0.7A
MODEL
OPERATION
FRIDGE CAPACITY
DIMENSION
N.W
G.W
REFRIGERATION RANGE
NOICE LEVEL
RATED POWER INPUT
RATED CURRENT
ICF19
AC100-240V,DC 12/24V
19L
513*310*557MM(Lift the handle)513*349*424MM(Put down the handle)
8.9KG
10.8KG
-20~20°C
≤45dB
45W
DC5.0A/2.5A,AC 1.2A~0.5A
MODEL
OPERATION
FRIDGE CAPACITY
DIMENSION
N.W
G.W
REFRIGERATION RANGE
NOICE LEVEL
RATED POWER INPUT
RATED CURRENT
ICF31
AC100-240V,DC 12/24V
32L
669*374*398MM
12.9KG
15.1KG
-20~20°C
≤45dB
60W
DC5.0A/2.5A,AC 1.2A~0.5A
MODEL
OPERATION
FRIDGE CAPACITY
DIMENSION
N.W
G.W
REFRIGERATION RANGE
NOICE LEVEL
RATED POWER INPUT
RATED CURRENT
ICF41
AC100-240V,DC 12/24V
40L
669*374*463MM
13.8KG
16.1KG
-20~20°C
≤45dB
60W
DC5.0A/2.5A,AC 1.2A~0.5A
MODEL
OPERATION
FRIDGE CAPACITY
DIMENSION
N.W
G.W
REFRIGERATION RANGE
NOICE LEVEL
RATED POWER INPUT
RATED CURRENT
ICF61
AC100-240V,DC 12/24V
65L
775*441*477MM
16.9KG
19.7KG
-20~20°C
≤45dB
60W
DC5.0A/2.5A,AC 1.2A~0.5A
MODEL
OPERATION
FRIDGE CAPACITY
DIMENSION
N.W
G.W
REFRIGERATION RANGE
NOICE LEVEL
RATED POWER INPUT
RATED CURRENT
ICF81
AC100-240V,DC 12/24V
65L
927*447*500MM
20.5KG
23.3KG
-20~20°C
≤45dB
80W
DC 6.0A/3.0A,AC 1.5A~0.7A
TECHNOLOGY & FEATURES
LED display, interior LED light, convenient handles,interior drain plug (ICF31/41/61/81), wire rack (not standard),basket (not standard).
Shockproof and durable design for handling rocky road. Incline operation up to 45° angle in short time.
Keep your cooler in place with optional tiedown kits no matter how rough the road is (only ICF31/41/61/81 are equipped with tie down slots, tie down kits soldseparately).
Three-stage car battery protection system prevents the vehicle from running out of battery.
Travel in peace and comfort with the whisper-quiet car fridge,designed for minimal noise disruption at less than 45dB.
Fridge/freezer combos, ICF19/31/41/61 can be used as either afridge or a freezer. ICF 81 is equipped with dual compartments,individual temperature control.
Maximize your space and your options with ICF series featuringa reversible door, designed for seamless integration into anycar or truck.
